What is VersiJack®

VersiJack® is a heavy duty height and slope adjustable pedestal designed for floor, deck, paver, beam and bearer support.

VersiJack® is used in the construction of roof terraces, pedestrian walkways, roof gardens, plaza decks, sun decks, balconies, pool surrounds, podium landscapes and verandas.

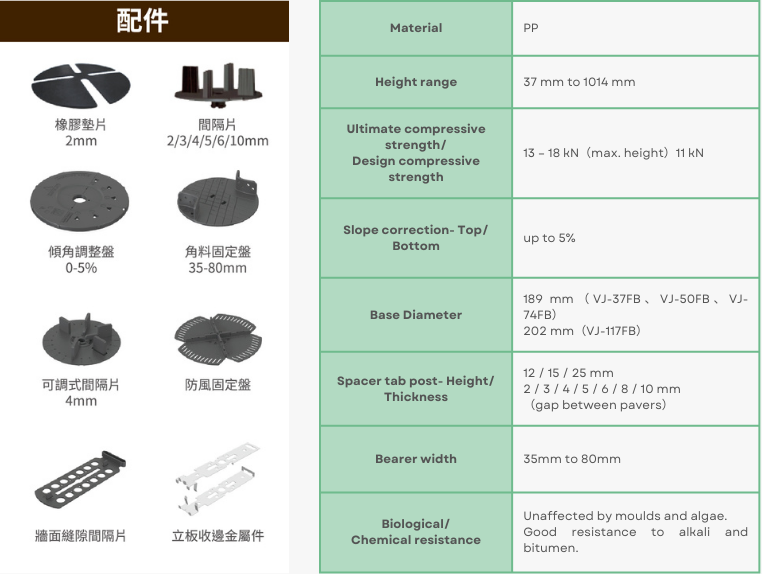

VersiJack® screwjack pedestal is height-adjustable from 37 mm to 1014 mm, with the use of proprietary “extenders”. An integrated slope corrector adjusts for slopes up to 5%.

VersiJack® reduces sound transmission, increases heat insulation and allows unsightly services to be concealed within the cavity under the elevated platform allowing easy access when required.

VersiJack® is used to create raised floors with most pavers including granite, marble, porcelain and precast concrete. These adjustable pedestal decking are widely used to support timber and composite bearers, and excellent for creating reusable or temporary exhibition flooring.

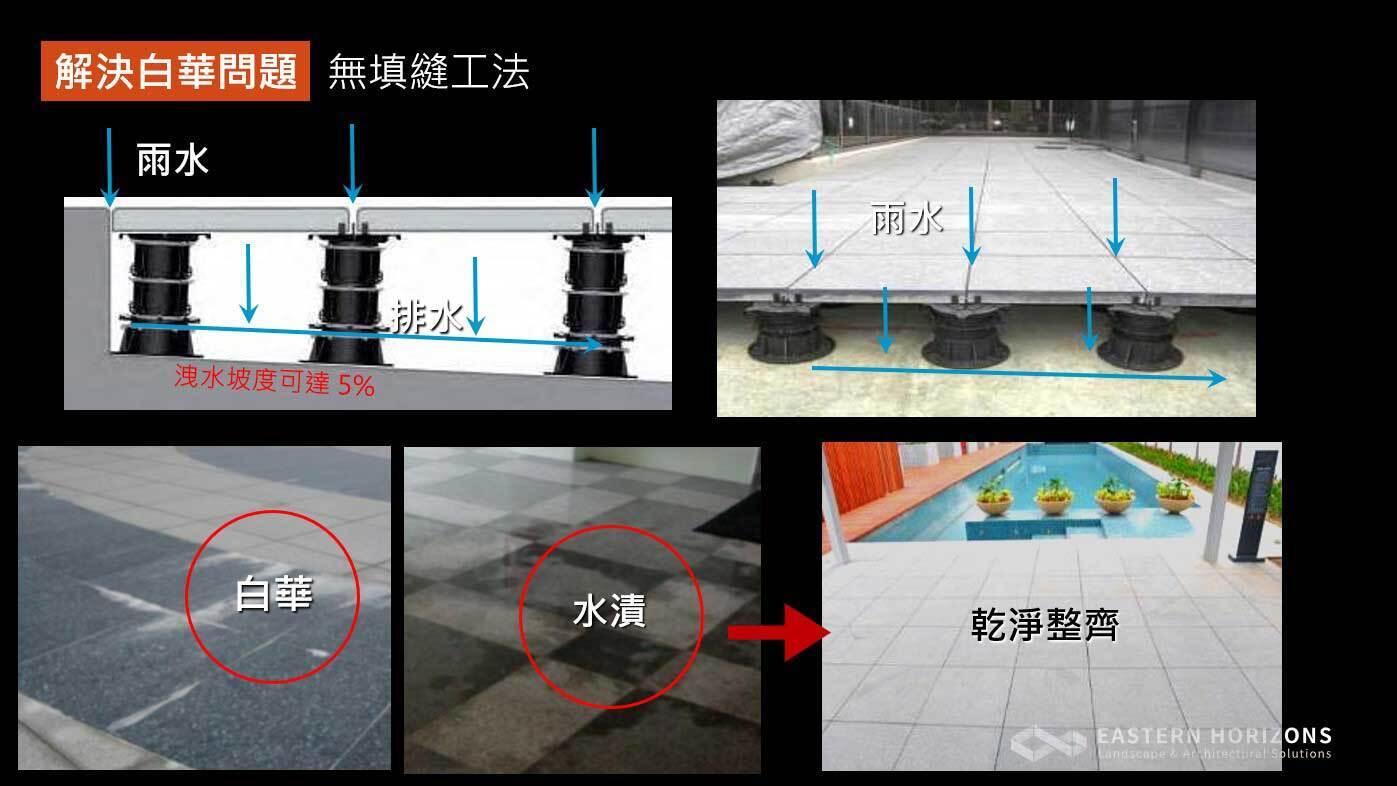

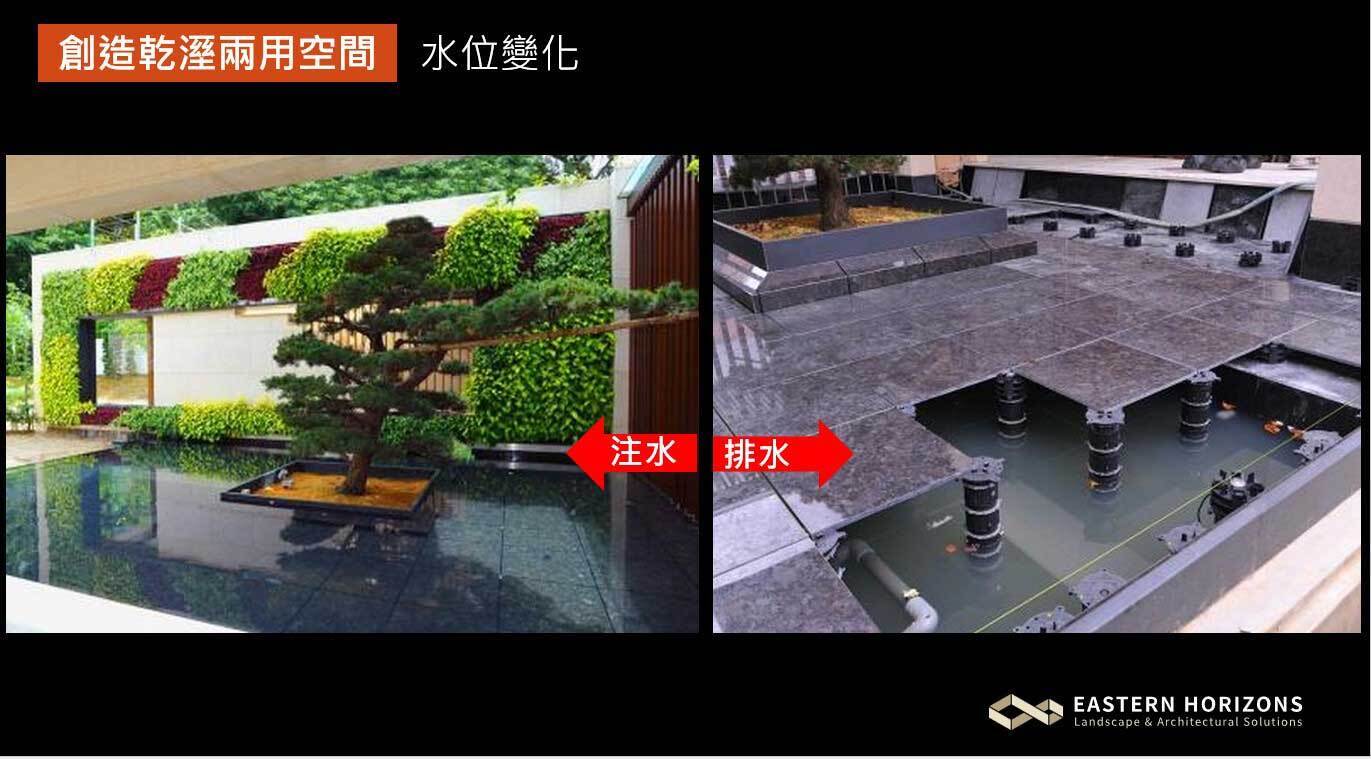

According to the Architectural Journal of the Architectural Society of the Republic of China "Research on the Insulation Performance of Double-layer Ventilated Roofs of Buildings", a high-priced floor roof with a height of 15 centimeters can block 90% of heat conduction, and the ELMICH Elevator adopts a non-caulking method, which not only solves the problem It can also extend the life of the waterproof layer, provide heat insulation, ventilation and energy saving to solve the problem of white flowers and water stains on the ground. In terms of aesthetics, it can create a mirror-like clean waterscape, create wet and dry spaces through changes in water levels, and hide underground equipment such as water pipes and lines to create new spaces such as roofs, terraces, and stairs. At the same time, maintenance costs are reduced and open maintenance is used to avoid secondary engineering.
